Fairfax E

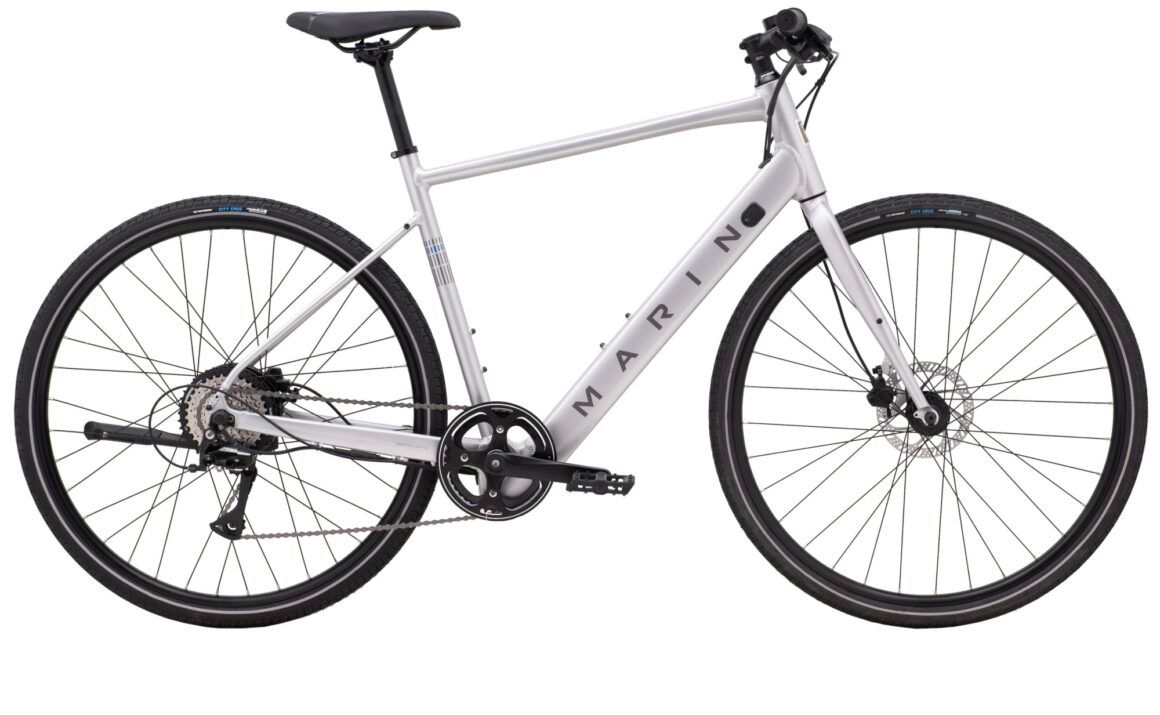

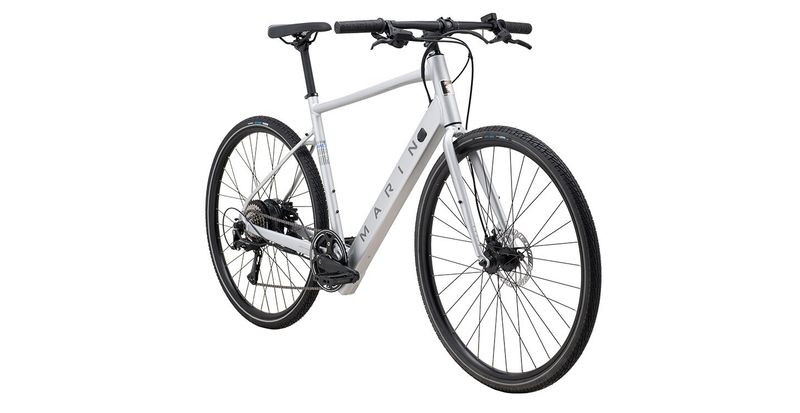

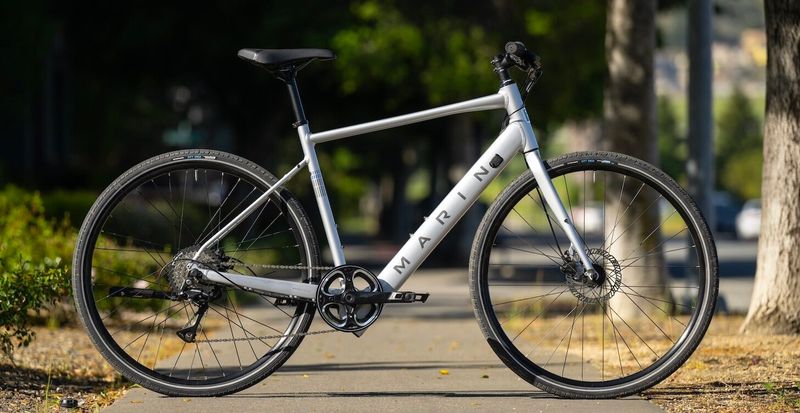

The all-new Fairfax E brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminum frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.

ELECTRIC DRIVETRAIN

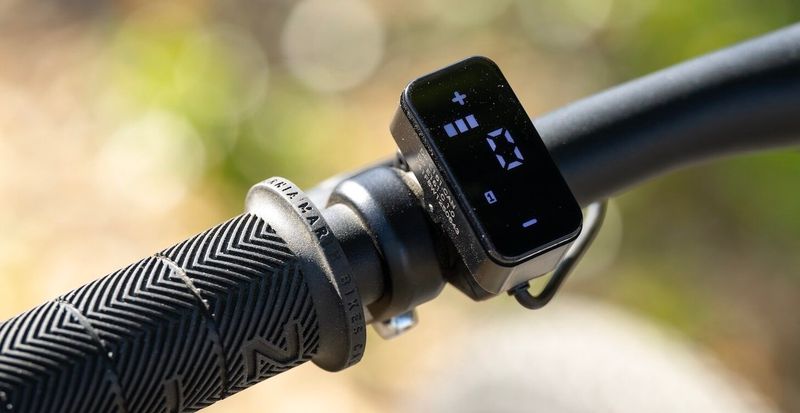

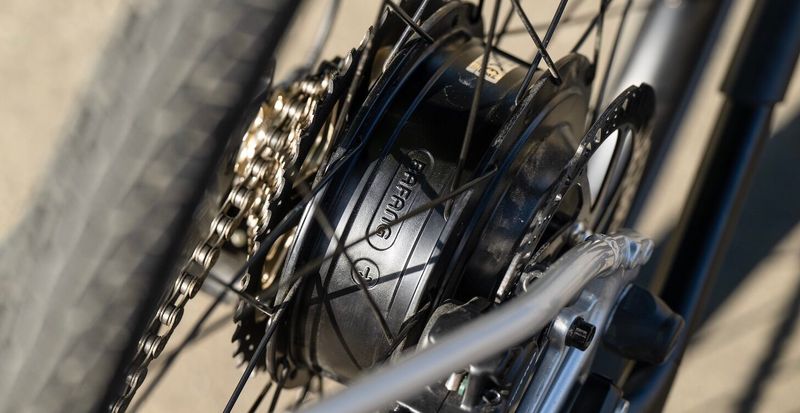

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.

INTERNAL BATTERY

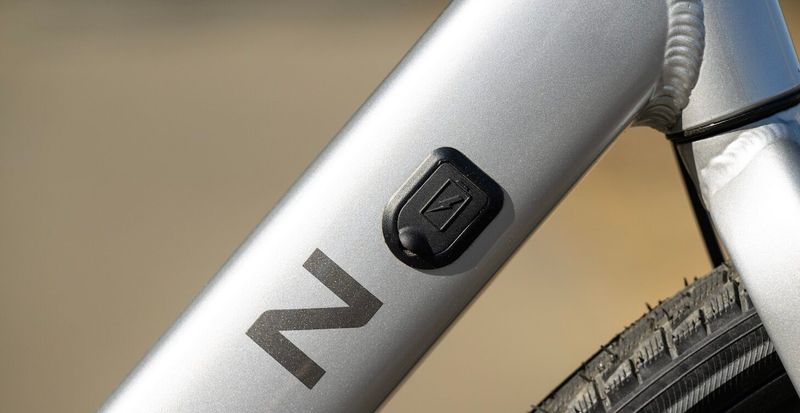

The 340Wh in-tube battery is neatly integrated into the Fairfax E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.

HYDRAULIC DISC BRAKES

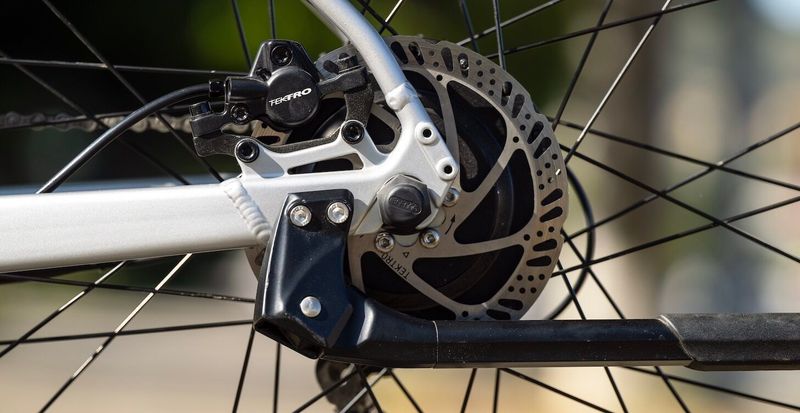

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

SHIMANO DRIVETRAIN

Shimano's stalwart Acera 8-speed drivetrain smoothly and reliably glides between the gearing.

Specifications

• Frame

  Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts

• Fork

  6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

• Rim

  Marin Aluminum Double Wall, Disc Specific

• Hub Rear

  Bafang 250 Watt Hub Motor, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world

• Hub Front

  Forged Aluminum Alloy, 32H

• Spokes

  14g Stainless Steel

• Tires

  Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

• Derailleur Rear

  Shimano Acera, 8-Speed, Wide Range

• Derailleur Front

  -

• Shift Lever

  Shimano Altus 8-Speed RapidFire

• Crankset

  Alloy Crank, Steel 42T Chainring, Ring Guard

• Bottom Bracket

  Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

• Chain

  KMC X8

• Cassette

  Shimano HG-400, 8-Speed, 11-40T

• Brakes Front

  Tektro HDM-275 Hydraulic Disc, 160mm Rotor

• Brakes Rear

  Tektro HDM-275 Hydraulic Disc, 160mm Rotor

• Brake Levers

  Tektro Hydraulic

• Handlebar

  Marin Alloy Flat

• Stem

  Marin Alloy

• Grips

  Marin County

• Headset

  FSA, Orbit CE No.8B

• Seatpost

  Marin Alloy, 27.2mm

• Saddle

  Marin Fitness

• Pedals

  Marin Oso OEM Nylon Platform

• Battery

  Bafang 340Wh, 36V, In-tube

• Controller

  Bafang Handlebar Mount LED Switch & Display

• Kickstand

  Alloy Rear-Mount

• Range, Charging Time

  19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
